Nichigoh Communication Electric Wire Co., Ltd.
MECHATROLINK-Ⅲ Network Cables
Spec
- M-Ⅱ
- M-Ⅲ
- M-4
Peripheral Devices
電纜及連接器
Features
① Safety Standard : Refar to Cable Standard
② Characteristic for Communication : ISO/IEC 11801 2nd, TIA/EIA 568B Cat5e
③ Oil resistance : Oil resistant PVC sheath
➃ Conductor Composition : Concentric-lay-stranded
⑤ Insertion loss : ≤18.0dB/100m (100MHz)
⑥ Environmental Regulation : RoHS Directive
② Characteristic for Communication : ISO/IEC 11801 2nd, TIA/EIA 568B Cat5e
③ Oil resistance : Oil resistant PVC sheath
➃ Conductor Composition : Concentric-lay-stranded
⑤ Insertion loss : ≤18.0dB/100m (100MHz)
⑥ Environmental Regulation : RoHS Directive

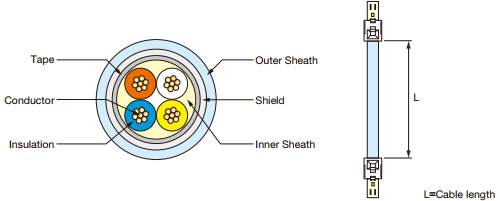

Specifications
| Item | Specifications |
|---|---|
| Cross Sectional Area | 0.34mm2 (22AWG) |
| No.of core | 4c |
| Sheald | Braid |
| Cable Color | Light Blue |
| Max. Transmission Distance | 100m |
| Connector | Industrial Mini Connectors |
Cable Standard
| Item | Safety Standard |
|---|---|
| CE | ISO/IEC 11801 |
| UL (Listing) | UL 444 |
| c-UL (Listing) | CSA C22.2 No.214 |
| UL(AWM) | UL758 AWM Style 20276 |
| GOST-R | GOST 18404.0 |
| Product model | Cable length |
|---|---|
| ML3-C0002 | 0.2m |
| ML3-C0005 | 0.5m |
| ML3-C0030 | 3m |
| ML3-C0050 | 5m |
| ML3-C0100 | 10m |
| ML3-C0300 | 30m |
