KOYO ELECTRONICS INDUSTRIES CO., LTD.

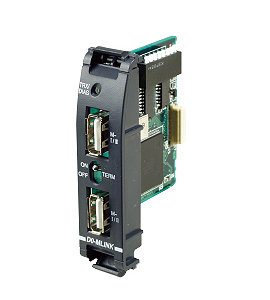

MECHATROLINK MODULE for DL06 series
D0-MLINK
Spec
- M-Ⅱ
- M-Ⅲ
- M-4
主站
控制器
- Category
- Category1（）
Features
- Achieved the motion control function using the small size PLC.
- Enabled DL06 to be used as a motion controller. (Scheduling to execute by DL05)
- By installing D0-MLINK, it is possible to connect easily with various actuators ; such as the servo motor and the stepping motors as well as I/O equipment. In addition, the motion system for the wiring-saving can be constructed.
- Positioning of seven independent axes can be executed with DL06.
(DL05 is scheduled to execute up to two independent axes.) - Only setting the parameter in the data register of PLC, high accuracy positioning can be achieved easily and at low cost.
Specifications
| Item | Specifications |
|---|---|
| Function | MECHATROLINK Master |
| Control method | MECHATROLINK-Ⅰ ：4Mbps MECHATROLINK-Ⅱ ：10Mbps |
| Number of Axis to control | DL06：7axes DL05：2axes (Being scheduled) |
| Transmission distance | The maximum total extension 50m Minimum distance between stations 0.5m |
| Data transmission method | Transmitting / receiving the data through the data register. Transmission: Setting the data by the ladder program. (command to each axis) Receiving: D0-MLINK sets the status of each axis in the data register. |
| Number of stations to connect | DL06: Up to seven slave stations DL05: Up to two slave stations. (Being scheduled) |
MECHATROLINK Specifications
| M-Ⅰ | M-Ⅱ | |||
|---|---|---|---|---|
| 17-byte | 17-byte | 32-byte | ||
| Command | Servo | × | × | × |
| Stepping Motor Drivers | × | × | × | |
| Intelligent I/O | - | - | - | |
| Simple I/O | - | - | - | |
| Inverter | - | - | - | |
| Transmission cycle | 2ms | 2ms | 2ms | |
