SEAL TECH INC.
「ROTOCAP」-GAT® Slip Ring for MECHATROLINK-Ⅲ
Spec
- M-Ⅱ
- M-Ⅲ
- M-4
周边设备
接线设备

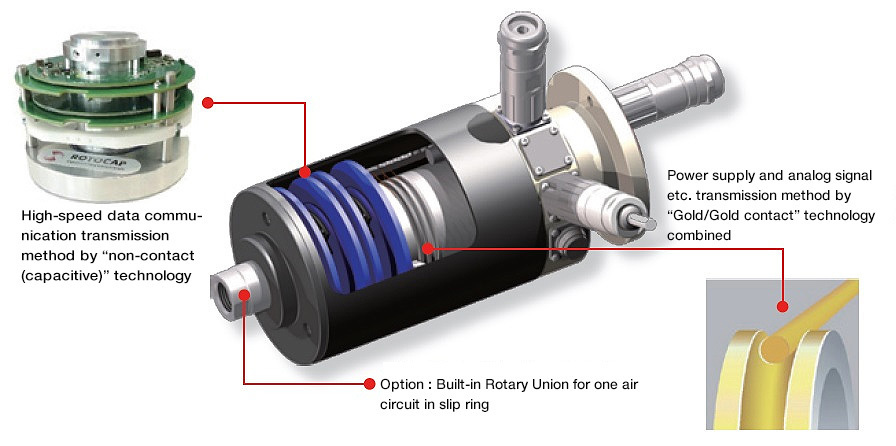

Features
- Non-contacting, capacitive data transmission for 100Mbps Fast Ethernet
- Maintenance-free slip ring
- Combined with contacting gold/gold technology for power supply etc.
- For all standard 100BASE-TX protocols
- High resistance against EMI and ESD
Specifications
| Item | Specifications |
|---|---|
| Housing outer diameter | φ160mm |
| Supported protocols | 100BASE-TX (Fast Ethernet, EtherCAT, Profinet, POWERLINK, SercosⅢ, MECHATROLINK-Ⅲ) |
| Bit error rate max. | <1×10-12 |
| Latency [μs] | <2μs |
| Operating temperature | −40°C to +80°C |
| Supply voltage [VDC] | 5, 12, 24VDC |
| Typical life span | Non-contacting portion / Maintenance-free Gold / Gold contact portion / 100 mil. Rotations |
| Protection class | IP64 (standard) up to IP65 |
| Option | One air channel available in slip ring unit |
Contact Information
SEAL TECH INC.
| SHIN-YOKOHAMA IC BLDG. 8F 18-9, SHIN-YOKOHAMA 3-CHOME, KOHOKU-KU, YOKOHAMA-SHI, KANAGAWA 222-0033, JAPAN | TEL : +81-45-473-7001 | FAX : +81-45-473-7017 |
E-mail : sales@sealtech.co.jp
URL : http://www.sealtech.co.jp/
Created on：Jul 19, 2017 Updated on：Apr 4, 2019
