Features

• Easy setup the MECHATROLINK Network

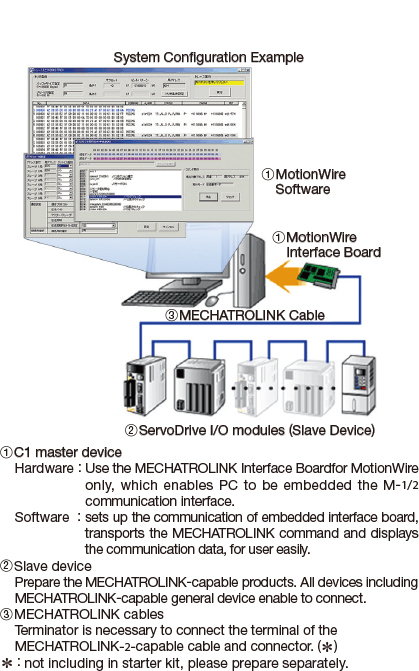

  Starter kit consists of Windows-based PC and PCI bus-interface board. You can use the network easily and immediately without complected configuration, after set up the hardware, put interface board to PC and install application.
• Just prepare this master-controller for the slave device development It was necessary to prepare all the corresponding master controllers in the slave developing equipment before. But this starter kit can freely compose the command issuing a master controller and apply as a virtual master controller, and also can add them easily an arbitrary command of an original protocol to say nothing of the standard command protocol with the command definitions.
• Embedded the monitoring function of Network Analyzer class Starter kit realizes the trace monitoring function on the interface board, which is monitoring the sending/receiving data between specified stations using the advantage of the own master control function. The confuguration of trigger condition enables to get the communication log (the maximum 16MB) in pinpoint and also collect communication data every communication cycle as well as the Network Analyzer.
• Realize the communication sequence control with script
  Easy command script can control up to 21 slave communication command issues. It realizes the power when the programed communication sequence perform repeatedly like the communication examinations.
