MECHATROLINK-Ⅱ Network Cables
Spec
- M-Ⅱ
- M-Ⅲ
- M-4
周边设备
电缆・插接件
Features
High-quality cables can be used to connect segments in a MECHATROLINK-Ⅱ network to transfer information and signals. A variety of segments, such as host controllers, servo drives, stepping motor drives, inverters, I/O signals, and sensors are available for MECHATROLINK-Ⅱ networks.
- Strict quality management, from material inspection to production.
- Off-the-shelf cables of standard lengths for quick delivery.
- RoHS-compliant.

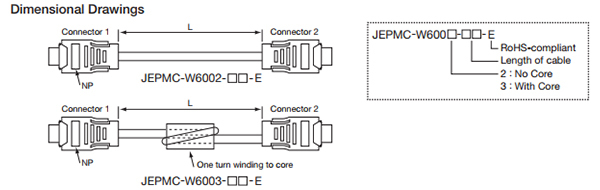

JEPMC-W6002-□□-E
JEPMC-W6003-□□-E (with ferrite core)
Specifications
| Item | Specifications |
|---|---|
| Transmission Cable | Two-core shielded twisted-pair wire |
| Cable Color | Black |
| Maximum Transmission Distance | 50m (100m with a repeater.) |
| Minimum Distance between Stations | 0.5m |
| Terminator | 130Ω |
Note: For more information, contact our international business dept.
