Features

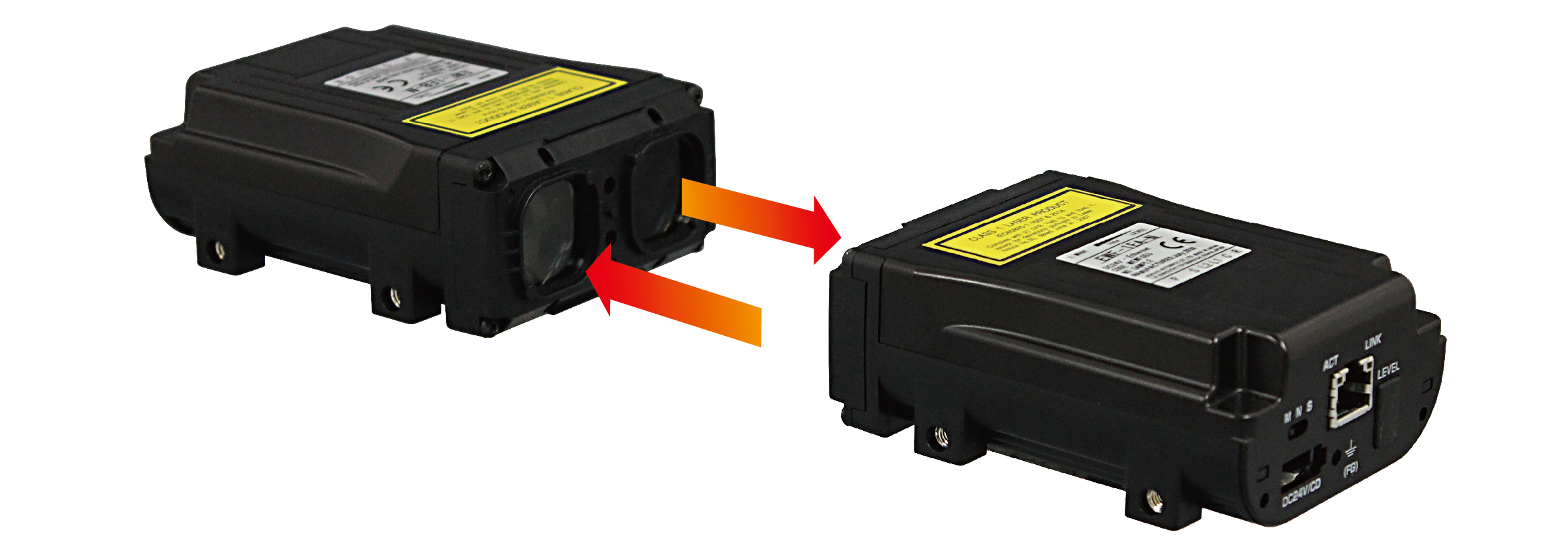

This device is an optical repeater with 100Mbps transmission speed. It can be directly connected to MECHATROLINK-Ⅲ network. Its transmission distance is Max. 100m.
This wireless optical communication enables the non-contact communication between mobile machines. There will be no concerns about cable damages because cables will not be used for communication between the two repeaters.
This wireless optical communication enables the non-contact communication between mobile machines. There will be no concerns about cable damages because cables will not be used for communication between the two repeaters.
Specifications
| Item | Specifications | |
|---|---|---|
| Model No. | EWF-0EA/B-N | EWF-1EA/B-N |
| Transmission distance | 50m | 100m |
| Directional angle | Full angle 1.4° | Full angle 1.0° |
| Power source | 24VDC (±10%) | |
| Current consumption | 120mA (24VDC) | |
| Laser safety standard | Class 1 | |
| Transmission system | Full-duplex two-way transmission | |
| Transmission speed | 100Mbps | |
| Interface | Ethernet | |
| Communication standard | IEEE802.3u 100BASE-TX Auto-negotiation compliant | |
| Modulation system | Direct modulation | |
| Connection | Mini clamp connector (Power/CD signal), Modular jack RJ-45 (Ethernet) | |
| Reception output (CD) | Photo-coupler open-collector (Withstand pressure 36V), ON when receiving light (Max.50mA, residual voltage 1.5V) | |
| Level voltage output (Analog output) |
Approx.0 to 3V, connector S2B-PH-K-S (JST) This is available only when adjusting the optical axis. External wiring is forbidden. |
|
| Ambient illuminance | 10,000 lux or less to (Halogen/mercury lamp) | |
| Ambient temperature | -10°C to +50°C | |
| Ambient humidity | 85%RH or less (non icing) | |
| Impact resistance | 490m/s2, Each 10 times in X, Y and Z directions | |
| Vibration resistance | Double amplitude 1.5mm, 10 to 55Hz, each 2 hours in X, Y and Z direction | |
| Protective structure | IP40 | |
