MECHATROLINK-Ⅲ Master Modules
Spec
- M-Ⅱ
- M-Ⅲ
- M-4
MDevice
컨트롤러
- Category
- Category1（）
Features
- Intel Core i7/Celeron embedded Industrial Computers:
AP/APW & FP product families - LCD touch-paned installed FC product family for more PCIe slots without LDC panel. - High speed Field Buses available on R/T OS INtime Bundled MECHATROLINK-Ⅲ Master capability & Library on the R/T OS
- High speed, extremely fine and multifunctional Motion Controlling utilized on the PC architecture platform above.
Various motion controlling can be realized on single platform. - Various tools prepared:
Precision analysis for multi-axial control, torque and etc.
Tools to tune for optimized control, for example.

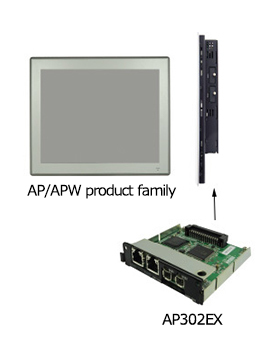

Specifications (AP302EX)
| Item | Specification |
|---|---|
| Interface and Protocol | MECHATROLINK-Ⅲ Compliant |
| Transmission Speed | 100 Mbps |
| Communication Cycle Time | 31.25 micro-sec. - 8 mili-sec. |
| Communication Mode | Cyclic Transfer |
| Connection Topology | Cascade-type / Star-type |
| Maximum Transmission Length | 100m |
| Minimum Length between Slave Nodes | 0.2m |
| System Bus | PCIe (specialized) |
| Maximum Nodes | 62 nodes |
| Presumed OS | INtime4.2 Windows Embedded Standard 2009 Windows Embedded Standard 7 |
| Connectors | 8 pin - industrial I/O connectors × 2 recommended connector model: 2040008-2 (Tyco Electronics) |
MECHATROLINK specifications
| M-Ⅲ | |||||
|---|---|---|---|---|---|
| 16-byte | 32-byte | 48-byte | 64-byte | ||
| Profile | Standard servo | - | × | × | - |
| Standard I/O | × | × | × | × | |
| Standard Stepping Motor Drivers | - | - | - | - | |
| Standard Inverter | - | - | - | - | |
| Transmission cycle | 31.25μs to 8ms | ||||
Contact Information
ALGOSYSTEM CO., LTD.
| 656 Kobirao, Mihara-ku, Sakai, Osaka 587-0021, Japan | TEL : +81-72-362-5067 | FAX : +81-72-362-4856 |
URL : http://www.algosystem.co.jp
